HY13

Collect
  • 商品说明

wired type weighing indicator / Analog weighing indicator / Handheld weighing indicator


Place  of OriginNingbo,China(Mainland)
Brand Name YEAHEVER
Model NumberHY13
TypeWeighing indicator
Accuracy24 bit AD
Sample  rate10 tims/s , 40 times/s or 80 times/s
Load  cell sensitivity1~3mV/V
DisplayLCD
Display  colorblack character on a white background
Division1/2/5/10/20/50/100 optional
Weighing Unitskg/lb/kN/g/t/viss
External InterfaceRS232 interface
Dimension(mm) 165*80*30mm
Power SupplyAAA 1.5V*4
PrinterOptional wired printer
Operating temperature-25°C~50°C, RH 10%~85%, Non-condensing
Storage temperature-30°C~55°C, RH 10%~85%,Non-condensing

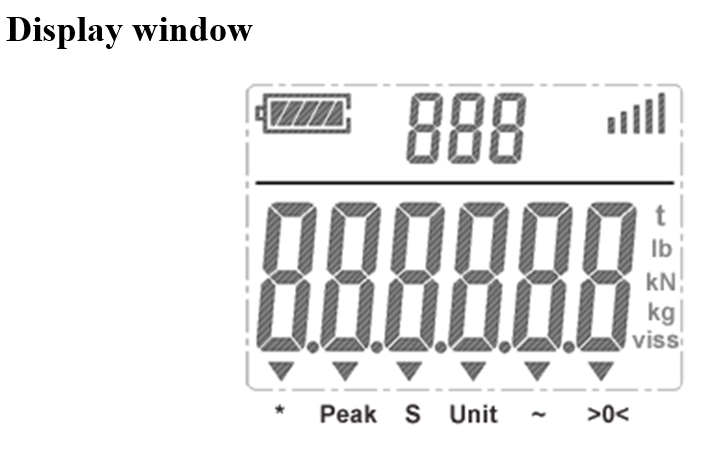

ON/OFF key: Long press the key, when you hear the beep, release the button, it can turn on or turn off indicator.

Battery power: the flag bit to show how much the current battery charge.

*When special function, the indicator light is on.

☉PeakWhen showing peak value, the indicator light is on.

☉SWhen entering the query function, the indicator light is on.

UnitWhen setting unit, the indicator light is on.

~When the weight is stable, the indicator light is on.

>0<When the weight is zero, the indicator light is on.

t / lb / kN / N / kg / g / viss: Unit.

888: Displays the number of queries.

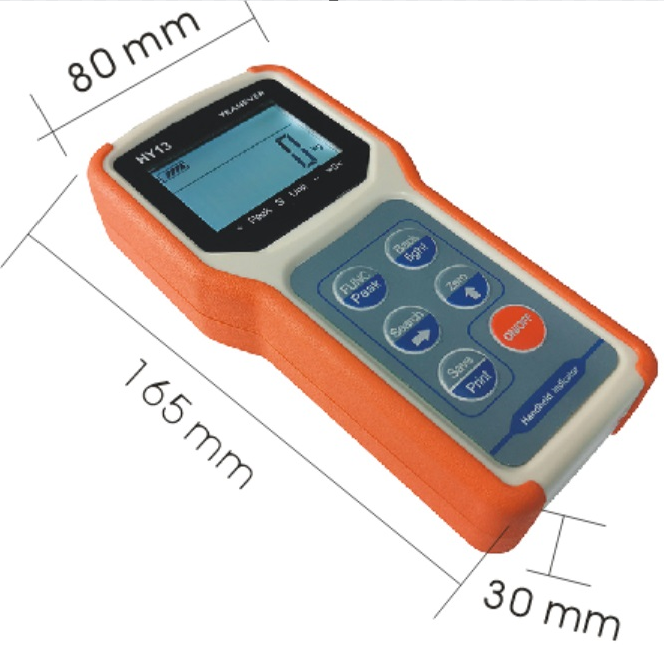

Dimension:



Load cell interface

(1)Aviation plug

PIN1

E-(Excitation-)

PIN2

S+(Signal+)

PIN3

S-(Signal-)

PIN4

E+(Excitation+)



(2) Solder free plug

E-

S-

S+

E+

RXD

TXD

GND

Connect   to load cell

RS232   output

(Optional)

(Excitation-)

(Signal-)

(Signal+)

(Excitation+)
