Product Detail

LAD-A

Collect
  • Product Description

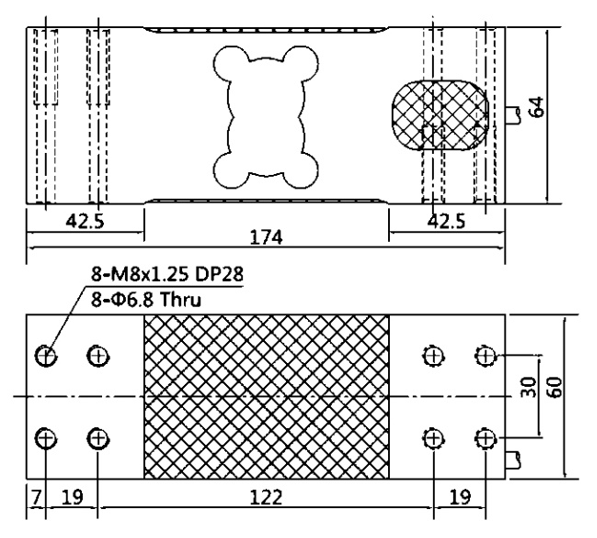

Dimension:


Item/Parameter

C3

Unit

Rated load (Emax)

60,100,200,300,500,600,800,1000

Kg

Maximum numbers of load cell verification Intervals

3000

d

Minimum numbers of load cell verification Intervals

0.01

% of rated load

Rated output

2.0±0.1%

mV/V

Combined error

0.015

±% of rated output

Temperature effect on sensitivity

0.0012

±% of rated output/°C

Temperature effect on zero balance

0.0008

±% of rated output/°C

Zero balance

1.0

±% of rated output/

Input resistance

405±10

Ω (Ohms)

Output resistance

350±3

Ω (Ohms)

Insulation resistance

≥5000

MΩ(Mega-Ohms)

Safe overload

150

% of rated capability

Ultimate overload

300

% of rated capability

Operating temperature range

-20~+70 / -20~+160

C/F

Recommend excitation

8~12

V(DC or AC)

Maximum excitation

18

V(DC or AC)

Material of elastomer

Aluminum alloy

Protection class

IP67/IP68
