BHW & HY280

Collect
  • Product

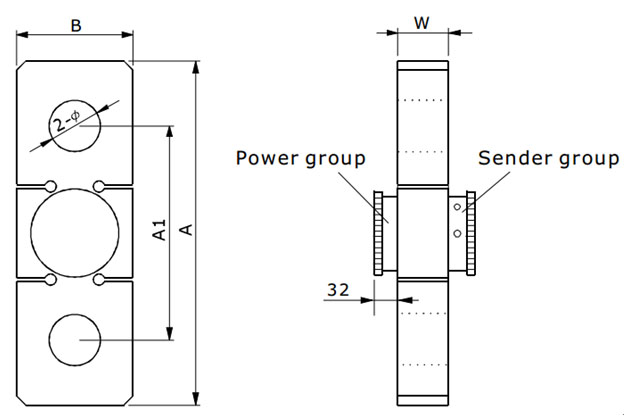

Dimension:


CAP./SIZE

A

A1

B

W

ΦS

Shackle

1~5ton

242

184

76

34

27

6.5t

10ton

290

200

90

47

37

12t

20~25ton

370

230

125

55

53

25t

30t

370

230

130

55

59

35t

50ton

430

260

150

65

73

55t

100ton

570

340

210

108

102

120t


For wireless load cell:

Wireless   Frequency:

430~470MHz

Wireless   Distance:

Min : 200m ( default )

A/D   Conversion:

Σ-Δ   24bit,  ≥50 times/seconds

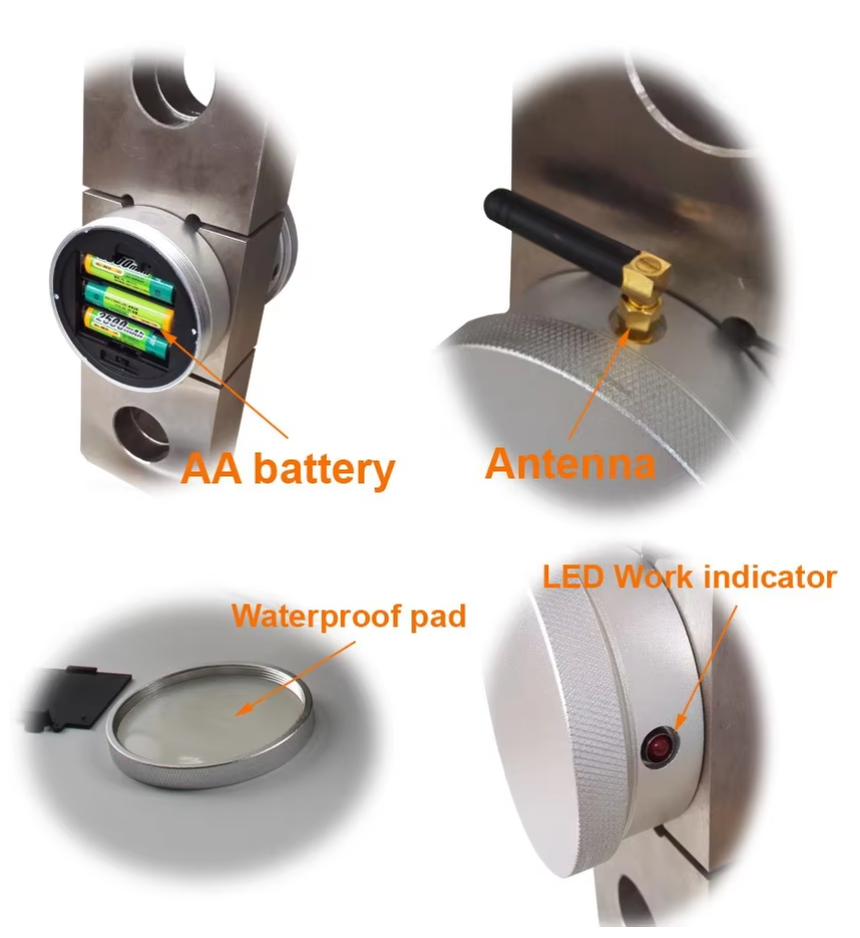

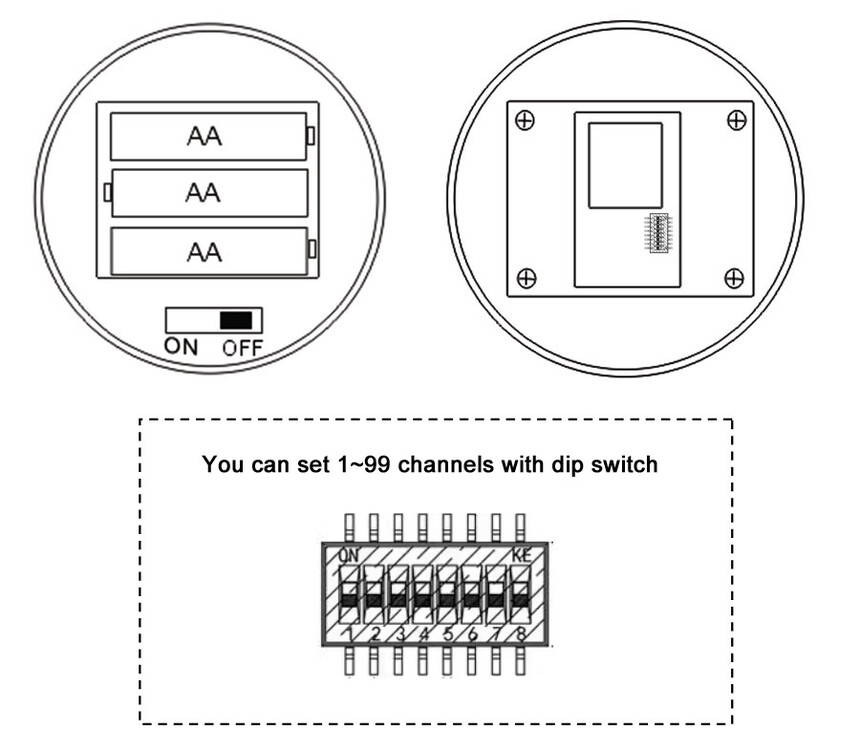

Battery

AA1.5V*3

Combined   Error:

±0.02%   F.S

Creep   Error ( 30min ) :

±0.02%   F.S

Zero   Balance:

±1%   F.S

Temp.   Effect On Zero:

±0.02%   F.S/ 10℃

Temp.   Effect On Span:

±0.02%   F.S/ 10℃

Operating   Temp. Range

-30~+   70℃

Maximum   Safe Over Load:

120%F.S

Ultimate   Over Load:

200%F.S

Sealing   Class:

IP66/IP67

Element   Material:

Alloy   Steel, Stainless Steel



For wireless indicator:

HY280Display192 * 64 dot matrix LCD screen
Weighing Unitskg/t/lb/kN…
Division1/2/5/10/20/50/100 optional
Dimension(mm)230*120*100mm
Power supplyRechargeable battery 7.4V / 2500mA
or 8.4V / 1A charger
External InterfaceOptional
PrinterNo
Operating temperature-25°C~50°C, RH 10%~85%, Non-condensing
Storage temperature-30°C~55°C, RH 10%~85%,Non-condensing
CommunicationWireless interface,434M~470MHZ
Characteristic      Wireless display   indicator, it can connect to 1~16 channel wireless sender for  show each   weight and total weight, it can  save 200pcs weighing records, optional   RS232 for continuous output current weight or you can connect to printer with   wire or wireless.


Optional accessories:

Wireless big display:

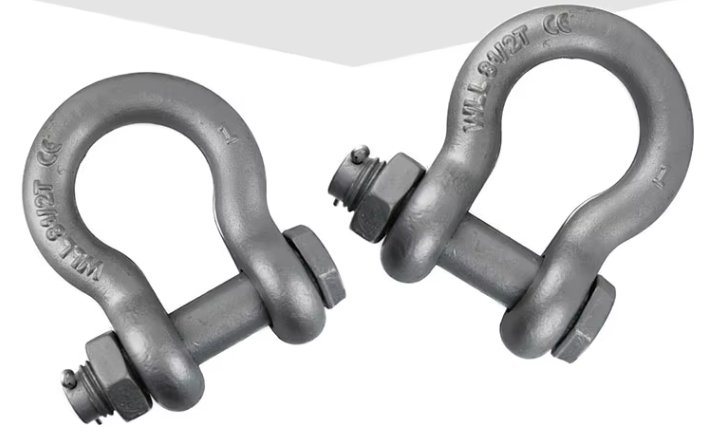

Shackle:
