LS02W & HY185

Collect
  • Product

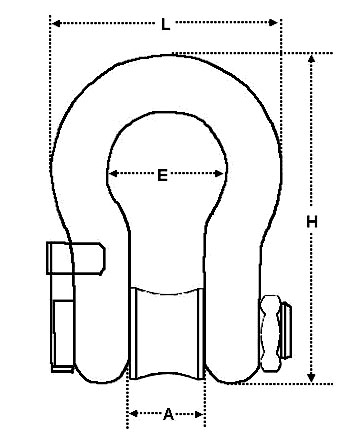

Dimension:


Load cell

 capacity(t)

A(mm)

E(mm)

L(mm)

H(mm)

Shackle

3~5t

36.6

58

102

148

6.5t

6t

46

74

131

190

9.5t

10t

51.5

82.5

146

210

12t

20t

73

127

225

313

25t

30t

82.5

146

253

348

35t

50t

105

184

327

453

55t

80t

127

200

365

546

85t

100t

133

229

419

626

120t

120t

140

254

468

653

150t


For wireless load pin:

Wireless   Frequency:

430~470MHz

Wireless   Distance:

Min : 200m ( default )

A/D   Conversion:

Σ-Δ   24bit,  ≥50 times/seconds

Battery

3.7V/4000mA   /7.4V/2200mA / AA1.5V*3 optional

Combined   Error:

±0.1%   F.S

Creep   Error ( 30min ) :

±0.02%   F.S

Zero   Balance:

±1%   F.S

Temp.   Effect On Zero:

±0.02%   F.S/ 10℃

Temp.   Effect On Span:

±0.02%   F.S/ 10℃

Operating   Temp. Range

-30~+   70℃

Maximum   Safe Over Load:

120%F.S

Ultimate   Over Load:

200%F.S

Sealing   Class:

IP66/IP67

Element   Material:

Alloy   Steel, Stainless Steel

Wireless   storage room

Cast   aluminum shell


For wireless indicator:

NameHY185
Product standardGB/T11883-2002
class of accuracyOIML Ⅲ
CalibrationAll use the  keyboard to complete
Power supply  batteryAAA1.5V * 4
DisplayLCD screen  with backlight
Reading  stability time≤5 seconds
Overload  alarmMaximum  scale
Using  ambient temperature-10℃～+50℃
Using  ambient humidity20℃，≤85%
range of  wireless200 meters  (open field)
Radio  frequency430~470MHz
Size165x80x30mm
CharacteristicWireless   display indicator,only show one channel weight, it can  save 200pcs   weighing record, optional RS232 for continuous output current weight or you   can connect to printer with wire or wireless.


Optional accessories:

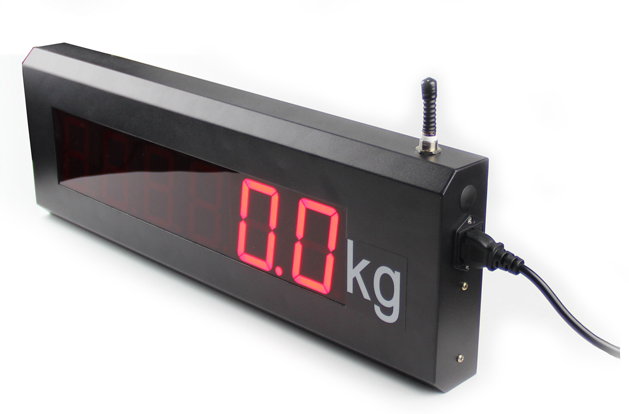

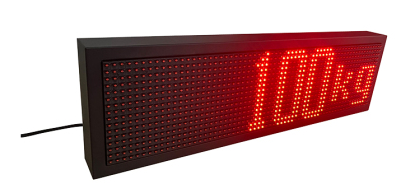

Wireless big display:
