Home >> Products >>Pull Weighing Systems >>Crane scale >> OCS-ZSH-10t - LCD
Product Detail

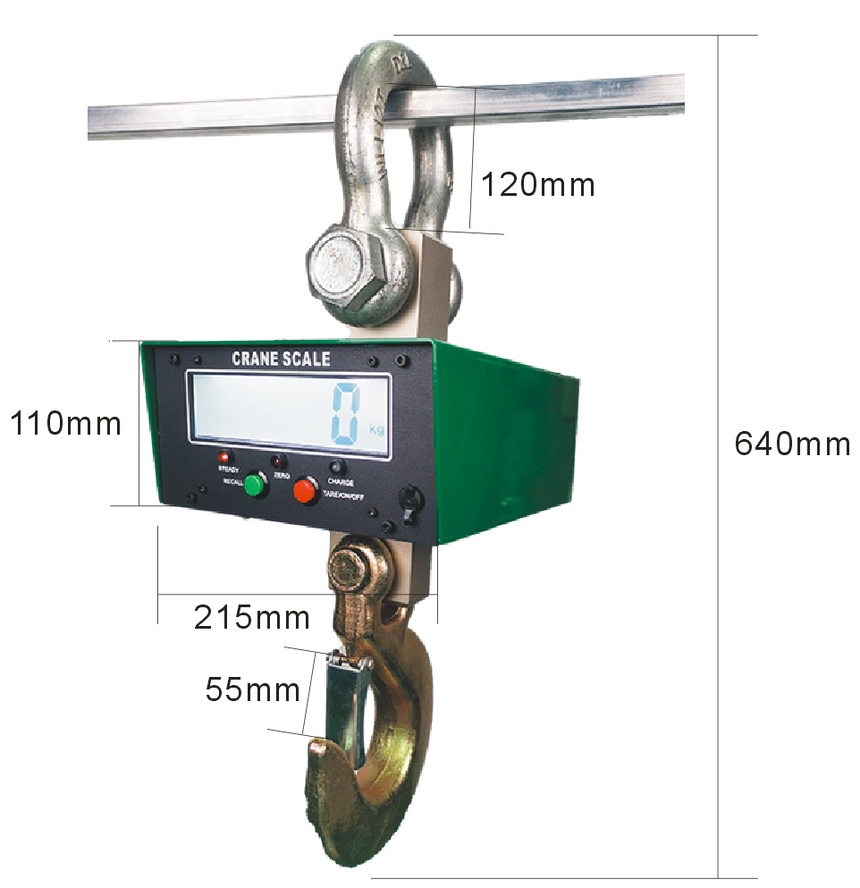

OCS-ZSH-10t - LCD

Collect
  • Product Description

Capacity: 10t

● Ultra- low-power design, circuit board smaller .
● Large capacity battery configuration , longer life .
● Unique intelligent charging protection function , prevention of over- current, over charge phenomenon. The battery life of a stronger, more
Lasting .
● ultra-bright, low-brightness display , automatic adjustment ( to be set )
● startup, shutdown , automatic voltage display .
● Good dynamic weighing performance, not because of swaying affect the weighing
● With a wireless remote control for easy operation .
● cumulative , automatic total , peeled, peeled distance, numerical maintained, showing sub- value choice, any weight correction .
● Overload, underload remind display, low voltage alarm , battery capacity is less than 10 % of the police . Technical Specifications
● Optional wireless communication module , the working carrier frequency is 430MHz ~ 470MHz ISM band between the open , license-free use ,
The current weighing data to within 1KM wireless meter or PC display or management .

Accuracy class according to international standard three scales .
Battery charging time of about 70 hours working time
Safe overload 150% F.S
Destruction of overloading
300% F.S
Operating temperature -10 ~ 50 ℃
Environment Humidity <90% R.H
Monitor specifications 5 30mm (1.2 〃 ) LCD high brightness displays.
Reading stabilization time <3S
Remote distance <25M




Specification:



ModelMax Cap.(Kg)Min. Weigh (Kg)Division (Kg)Total Display Counts (N)
OCS-ZSH -11000100.52000
OCS-ZSH -22000200.52000
OCS-ZSH -330002013000
OCS-ZSH -550004012500
OCS-ZSH -101000010022000
