Suitable for general weighing indicator with printer, 1~4pcs load cell, such as bench scale, platform scale etc.

Dimension:

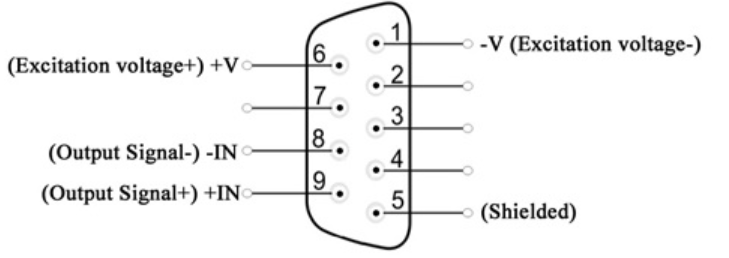

Port of load cell:

 Key functions

[Print]           Short Press this button for print current record.

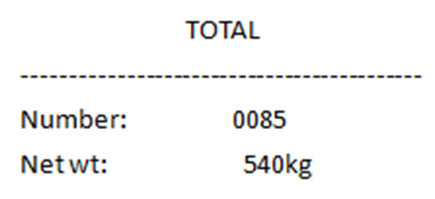

  Long press this button for print total record and clear statistical record.

[#/TOTAL]     Press this button while turn on ,it will enter to calibrate mode;

                      Print total record when weighing state.

[Func/set]    Keep pressing this button for 5 seconds more in weighing mode, it will come into operator setting mode;

                     less than 5 seconds, it will come into counting mode.

[*/acc]         Press this button to accumulating the weight in weighing mode.

                     Press this button for sample taking in counting mode

[Tare/move ]   Press this button to tare in weighing mode.

 [Zero/edit ]     Press this button to zero in weighing mode.

Set date and time:

In weighing mode, keep pressing [FUNC] for 5 seconds more, it will enter operator setting mode (mode P),

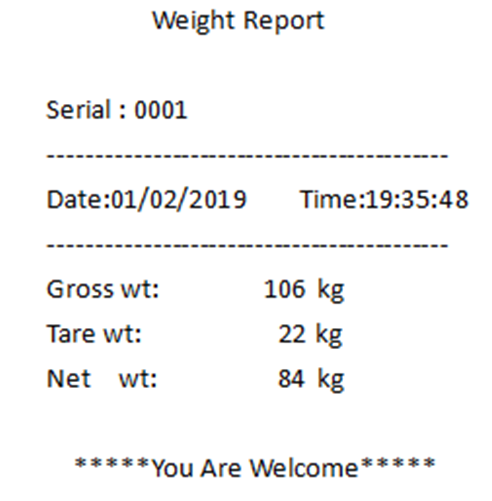

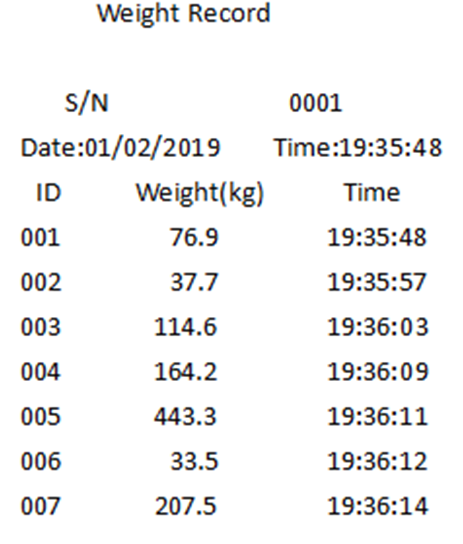

Print format is optional:
