Technical Parameter

Model : HY810

Analog signal input range: -20mV ~ +20mV

AD internal conversion accuracy: 1/1000,000

Sampling rate: 80 times /s

A/D nonlinearity: <0.01%FS

Excitation voltage of load cell: DC5V

Max. connection number of load cell: 8 at 350 ohm and 16 at 700 ohm

Display: 7.0 inch color screen, 800*480 resolution

Keyboard: touch button in screen

Clock: display year, month, day, hour, minute, second, automatic leap year, leap month

Interface for big display: current ring and RS232 (600bps)

Communication interface: RS232, RS485 and wireless communication mode optional; 1200/2400/4800/9600/19200 is optional

Print interface: Different types of printers with external RS232 interface (functions need to be customized)

Data storage 50 sets of tare weight, 50 sets of one-time weighing records, 500 sets of secondary weighing records (can be exported to the computer through U disk or serial port (optional))

Power voltage: AC220V or DC12V, DC6V/10A rechargeable battery

Operating temperature and humidity: -10 ~ 50℃, 90% RH or less

Size: 223mm x 178mm x 50mm

Self-weight: about 2kg

 2.1 Connection between indicator and load cell

Excitation voltage of this controller is DC5V, maximum exciting current is 350 mA, can be connected with 8 pcs 350 Ω load cell.

The figure below marks the meaning of each pin:

The load cell is connected with 6-wire (long-wire compensation mode). If the load cell uses 4-wire, "E+" and "F+", "E-" and "F-" must be shorted together on the load cell plug of the controller. If not connected, the controller will not work.

2.2 Connection between indicator and big display

2.3 Connection between indicator and computer

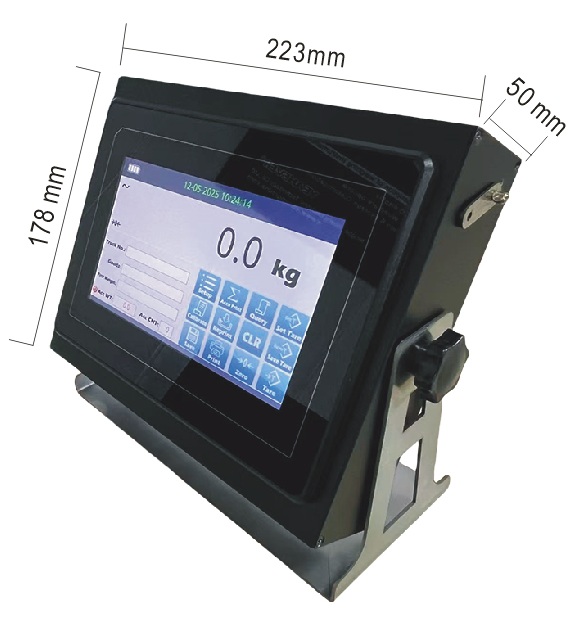

 Dimension：
